Bad Dad's Classic Series Fairing is a great way to customize the front of your bagger. The Classic Series Fairing is a bolt-on part that installs with all of the OEM mounting hardware
Note: It is important that all fairing hardware including the spot lamp hardware is loosened during installation. These items will be re-tightened during the assembly as shown below.
1) Begin by removing the three bolts across the top of the OEM fairing which secure the windshield.
2) Then remove the upper and lower bolts which secure the inner and outer fairings together.
3) Now the OEM outer fairing can be removed.
4) Then loosen the hardware that attaches the spot lamps to the fork legs.
Note: This step is important to help unload the pressure along the bottom of the fairing.
5) Your Classic Series Fairing can now be installed. Begin by attaching the three bolts along the top of the fairing.
6) Reattach the bolts through the inner fairing and into the outer fairing.
Note: Keep all of these bolts loose until all of the mounting bolts are loosely in place.
7) Once all of the bolts are in place, begin to finally secure all of the hardware by applying slight downward pressure while tightening the bolts.
Recommended tightening sequence: (1) tighten the two bolts under the mirrors; (2) tighten the two bolts at the bottom of the fairing; (3) tighten the three bolts along the top of the windshield; and (4) tighten the bolts along the spot lamps.

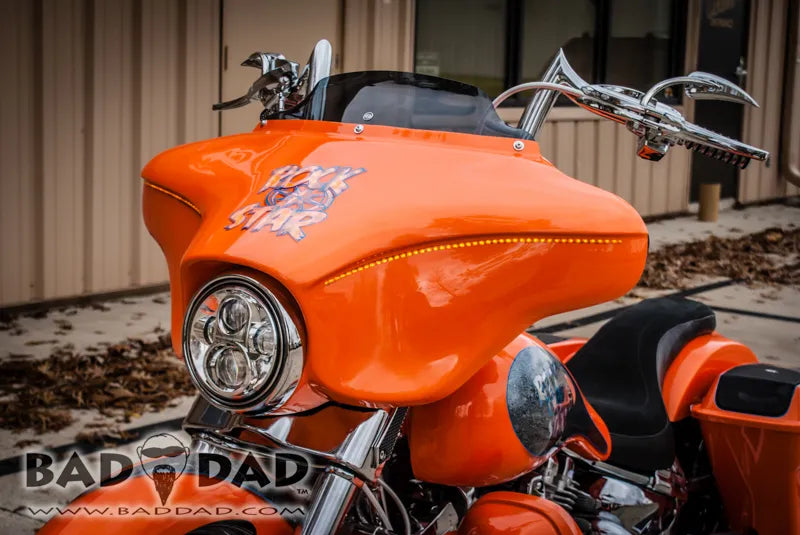

8) The Classic Series Fairing is now installed.
9) Finished.
