2014+ Speaker Lids with 5x7 Speaker

2014+ Speaker Lids with 5x7 Speaker

Bad Dad's Competition Series Speaker Lids are the most aesthetic way to put a great stereo system into your bagger's saddlebags. Here are the assembly diagrams for putting together your new Competition Series Speaker Lids.

1) The first diagram lists the included hardware and assembly procedure. The second photo illustrates the wiring for your new speakers and the assembled underside of the saddlebag lid.

2) If you are using the Flush Mount LED version, here is the wiring diagram for the LEDs on the 2014+ Touring models. This diagram illustrates the correct wiring layout for the plug-n-play wiring harness which is included with each set of Flush Mount Speaker Lids.

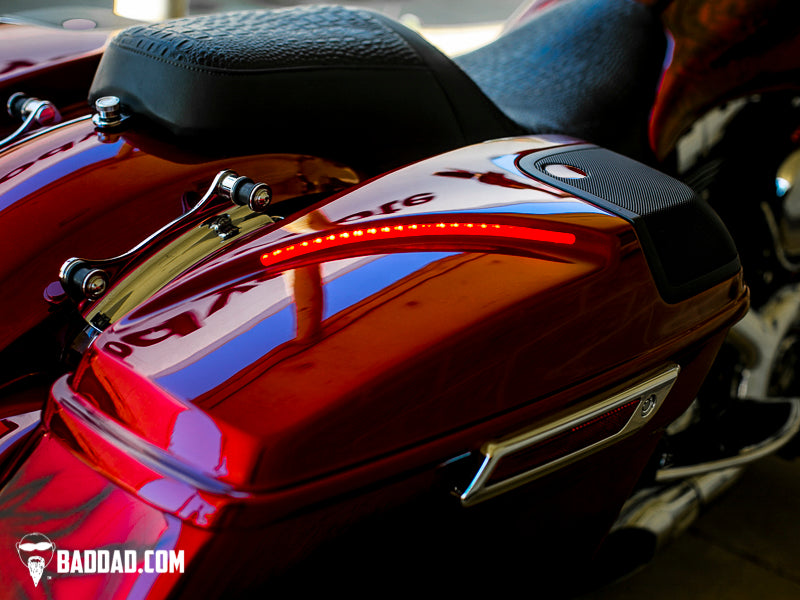

3) Finished.
