Complete Tour Pack Wiring Harness

Fits

• 1997-2024 Touring models
• Plug-n-play wiring harness with Ultra lights
• Not needed for Bad Dad Tour Packs

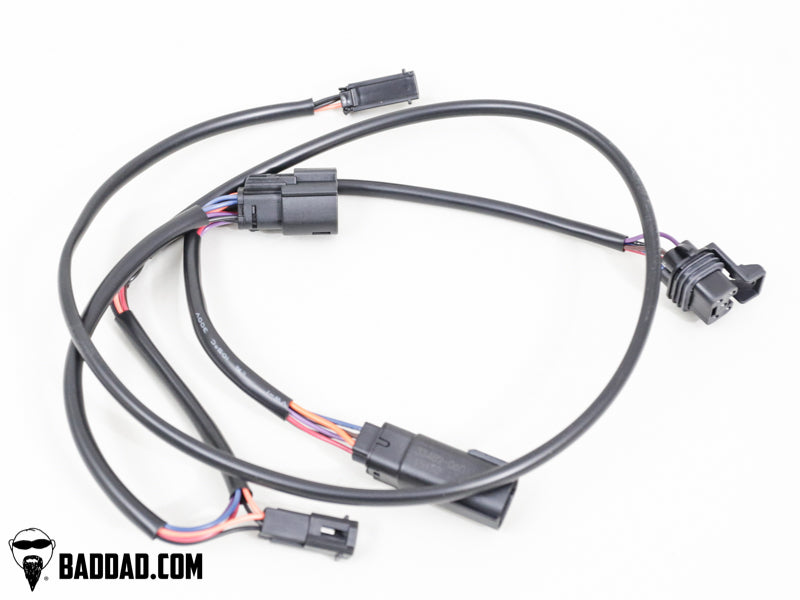

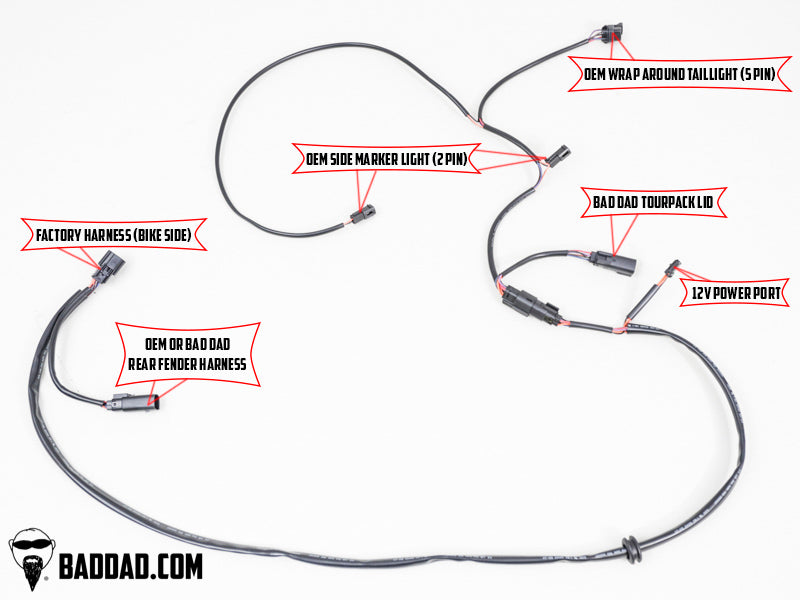

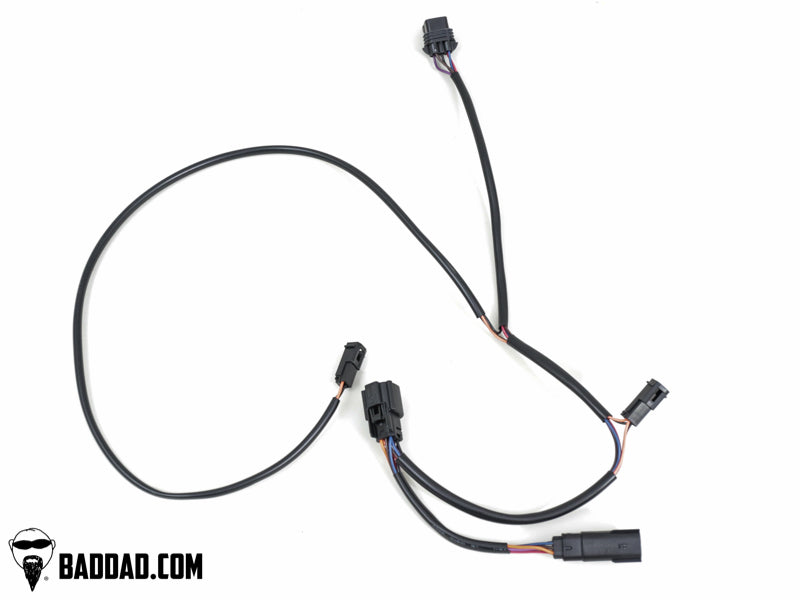

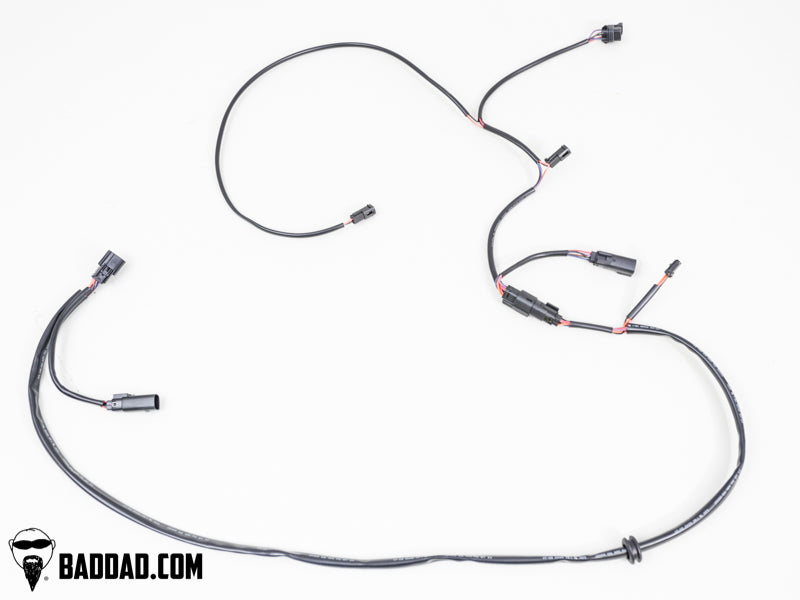

This is the complete wiring harness to plug any 2014-2023 model year Tour Pack assembly onto your 1997-2024 Touring model. This harness plugs in underneath the bike's seat and runs into the Tour Pack where it plugs into the 5-pin connector for the OEM-style "wraparound taillight." This harness also has separate 2-pin connectors for attaching a side marker light. The harness also features an additional 2-pin connector for attaching a charging port.

Note: A complete plug-n-play harness is already included in all orders of Bad Dad's Tour Pack Lid with LEDs and Bad Dad's Tour Pack Assembly with LEDs. You do not need to order this or any additional wiring if you're using one of Bad Dad's LED products.

Note: Our harness functions as an OEM replacement harness (which is not available through Harley-Davidson). We do not guarantee that this harness will be compatible with anyone else's products. Please see the product images for reference.

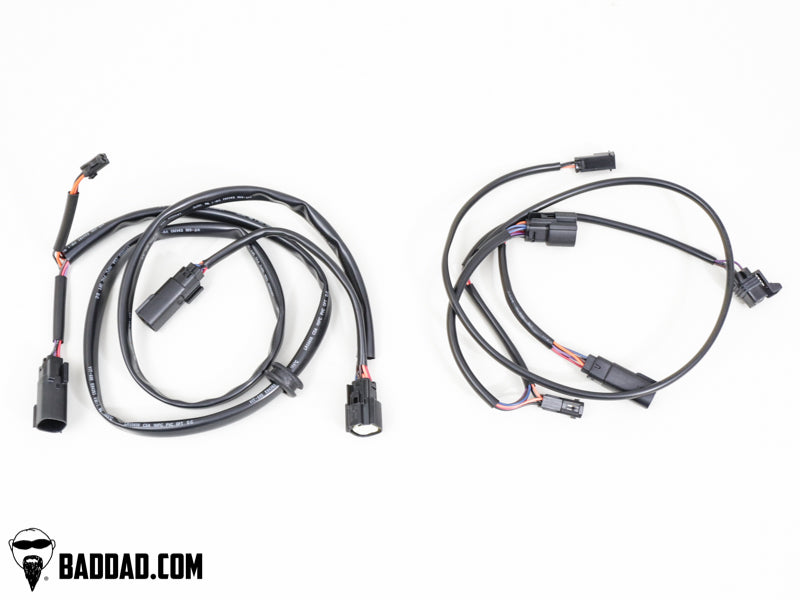

This harness is different than the Basic Tour Pack Wiring Harness because the Complete Harness includes the complete plug-n-play connections for the OEM-style taillights. Our Basic Tour Pack Wiring Harness does not feature these additional connections.

An optional 12-volt power port is available separately. Each Tour Pack Wiring Harness features an additional 2-pin connector for plugging in this optional 12-volt power accessory, which is perfect for charging mobile electronics and other devices.

Use this custom wiring harness on any Road King, Road Glide, Street Glide, Electra Glide, or Ultra project.

All of Bad Dad's custom bagger parts are proudly made in the USA.
